TS30-1300

Manufacturer: Mimaki

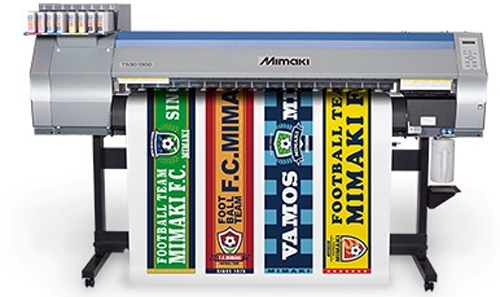

Mimaki TS30 entry-level dye sublimation inkjet printer for textiles

The TS30-1300 printer is a 54-inch wide, dedicated transfer model that is ideal for first-time users or design shops producing short-run pieces, samples and custom work for transfer to textiles or hard surfaces. It is an entry-level model well-suited to just-as-needed production of apparel prototypes and custom goods. Without a heater and take-up device, the printer features only those functions needed for sublimation transfer printing, making it easy to operate.

TS30-1300 Go Beyond Conventional

Easy-to-operate entry-level model
Dedicated transfer paper printer
53.6-inch (1361 mm) print width; 54-inch (1371 mm) media width
Produces vibrant colors with Sb54 dye sublimation inks
- 4 color: Bl, M, Y, K
- 6 color: Bl, M. Y, K, Lbl, Lm
Print speeds of up to 211 SqFt/hr (19.6 SqM/hr)
Variable dot printing for exceptional image quality
MAPS for smooth images
Uninterrupted Ink Supply System (UISS) for improved productivity in 4 color mode

Highlights of the Mimaki TS30-130 Printer

Easy to-operate entry level model

The TS30 printer features a selected set of functions designed for ease-of-use, even for novice users. The printer is bundled with Mimaki RasterLink6 RIP software, for a quick start immediately after installation.

Just as needed production

This 54-inch model gives designers and print shops the ability to produce only what’s necessary without the need to subcontract, enabling them to maintain control of the quality and timeline throughout the printing-transfer-finishing process – as well as the entire revenue stream. It uses economical Mimaki Sb54 dye sublimation inks in a four-color ink set with print speeds of up to 211 square feet (19.6 square meters) per hour.

High image quality

The TS30 printer utilizes variable dot imaging along with Mimaki Advanced Pass System, which applies ink in gradations over several passes using a blending mask pattern. The symmetrical printhead nozzle arrangement facilitates an identical ink color sequence in both printing directions to achieve high quality printing.

Sublimation transfer printing enhances product presentation

Sublimation transfer technology can be used in a range of applications from soft goods to hard surface decoration.

Vibrant Sb54 inks

Mimaki original Sb54 dye sublimation inks produce vibrant colors with reliable jettability.

What can you do with the Mimaki TS30-1300 printer

Sample textile production
Custom fashions
Team performance wear
Backlit fabric signage
Exhibit graphics
Banners
Flags
Interior décor
Hard surface decoration & more

Technical overview of the Mimaki TS30-1300 printer

Print system	On-demand piezo, one head (1440 nozzles) per color
Max media width	53.9 inches (1371 mm)
Max print width	53.6 inches (1361 mm)
Printing resolutions	540, 720, 1080 dpi
Max print speed	211 SqFt/Hr (19.6 SqM/Hr) in four-color Draft mode
Ink type	Mimaki Sb54 dye sublimation ink: Bl, M, Y, K, LBl, Lm
Ink capacity	Standard: 440 ml cartridges Optional: bulk ink system for use with 2 liter bottles
Max roll weight	55 lbs. (25 kg)
Operational environment	Temp: 68˚ – 86˚ F (20˚ – 30˚ C) 35-65% RH (non-condensing)
Connectivity	USB 2.0
Power supply	Single-phase AC 100-120V (AC 220-240V
Dimensions (W x D x H)	90 x 29 x 56 inches (229 x 74 x 142 cm)
Weight	319 lbs. (145 kg)
