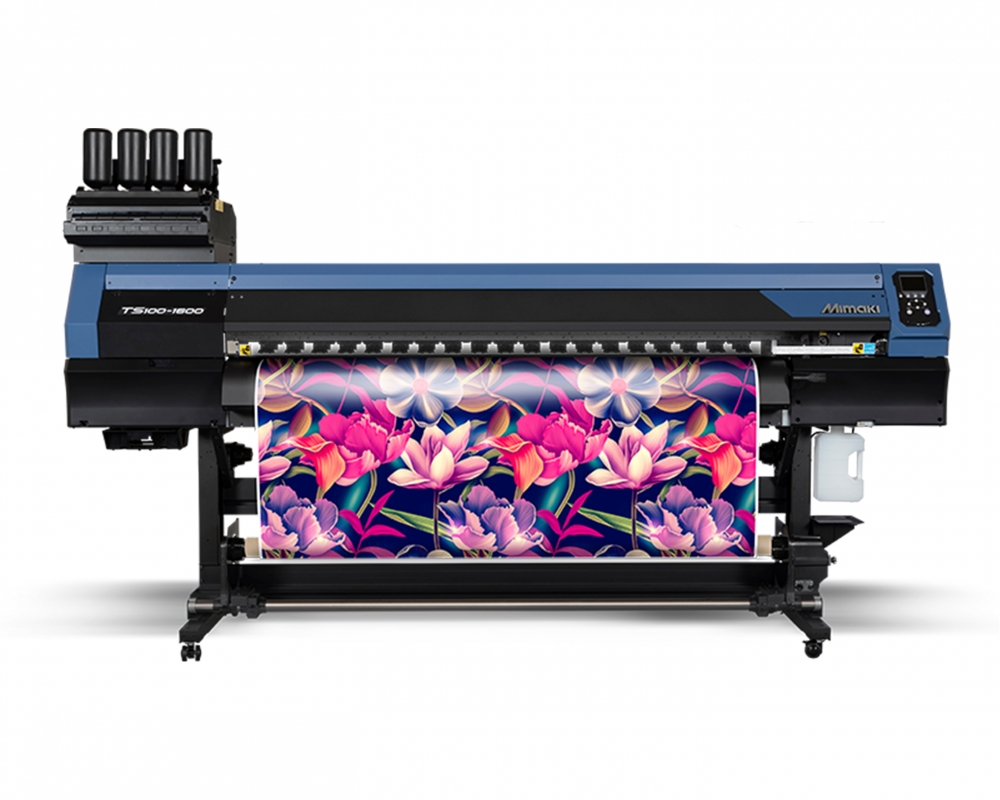

TS100-1600
Manufacturer: Mimaki
Entry-Level Price, Professional Results
The TS100-1600 is an affordable professional grade sublimation roll-based printer. Consistently and expertly print highly detailed photographic quality graphics for small to large production runs.
- Available in 64” with print speeds up to 753 Sq Ft/Hr
- Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
- Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
- Sublimation ink colors: Blue, Magenta, Yellow and Black
- NEW Dot Adjustment System (DAS) automatically aligns to ensure consistent quality and repeatability
- NEW, easier to use RIP software, RasterLink7, included; reduces RIP time by 25%
- TxLink4 Lite supported for more advanced workflows
Specifications
| Printhead |
Two staggered, on-demand piezo heads |
| Print resolution |
360 dpi, 600 dpi, 720 dpi, 900 dpi |
| Print speed (4 color mode) |
753 SqFt/Hr |
| Maximum Print Area |
63.3″ (1610.0 mm) |
| Maximum media width |
63.8″ (1620 mm) |
| Maximum Media Thickness |
up to 0.04″ (1 mm) |
| Maximum Media Weight |
Up to 99.2 pounds (45 kg) |
| Ink Type |
U.S. & Canada – Sb610 | Mexico, Central & South America- Sb610 |
| Interface |
1000 Base-T Ethernet cable or USB2.0 cable |
| Power Supply |
AC100~120V/ 200~240V±10%, 50/60Hz±1Hz |
| Power Consumption |
INLET 1/2: 1,440W or less (AC100V environment) 1,920W or less (AC200V environment) |
| Operational Environment |
Temperature 20° – 30°C |
| Dimensions (W × D × H) |
109.3 x 27.6 x 58.1″ (2,775 x 700 x 1,475 mm) |
| Weight |
366lb (166kg) |
| Certifications |
VCCI class A, FCC class A, |
