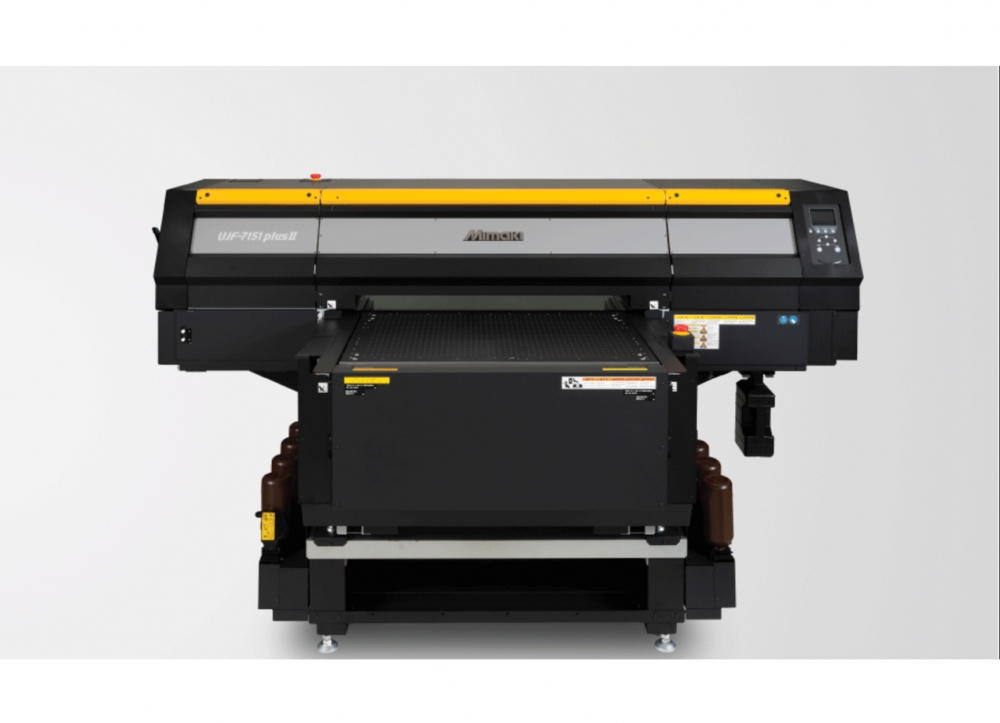

Mimaki UJF-7151 Plus II
Manufacturer: Mimaki
Engineered For Industrial Printing Workflows
The Mimaki UJF-7151 Plus II UV-LED printer is the next generation model in the world’s best selling UJF Series line. This state of the art printer is geared for high accuracy, high image quality, and industry-leading productivity and stability.
- Print area of 28” x 20”; up to 6” thick
- Load capacity has been increased from 22lbs to 66lbs (10 kg to 30 kg),
- Capable of printing up to 1800 dpi
- Print speeds up to 190% faster than the previous model
- 8 print heads
- Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
- Pair with our desktop 3D printer to produce jigs, molds for thermoforming or custom models
- All ink channels offer Mimaki Circulation Technology
Specifications
| Printhead |
eight on-demand piezo heads in a staggered array |
| Print Resolutions |
1,800 dpi |
| Print Speed (4 Color Mode) |
22 beds / hour |
| Maximum Print Area |
27.9″ x 20.0″ (710 × 510 mm) |
| Maximum media width |
28.7″ (730 mm) |
| Maximum Media Thickness |
up to 6.02″ (153 mm) |
| Maximum Media Weight |
66.0 lbs. (30.0 kg) |
| Ink Type |
U.S. & Canada- LH-100, LUS-120, LUS-350 | Mexico, Central & South America- LH-100, LUS-120, LUS-350 |
| Interface |
Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power Supply |
Single phase AC100-240V +6%/-10% 50/60Hz ± 1Hz |
| Power Consumption |
AC100V: 1.3kW or less |
| Operational Environment |
Temperature 59° – 86° F (15-30° C) |
| Dimensions (W × D × H) |
87″ x 62″ x 51″ (220.3 x 158 x 129.3 cm) |
| Weight |
728 lbs. (330 kg) |
| Certifications |
VCCI class A, FCC class A, ETL UL 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, GREENGUARD Gold |
