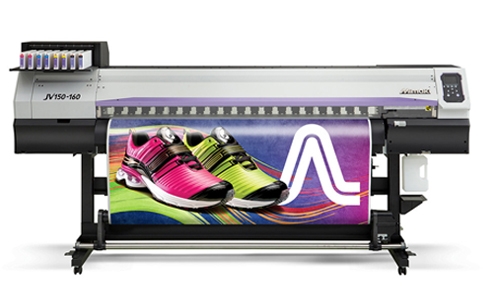

JV150 Series

Manufacturer: Mimaki

Mimaki JV150 Go Beyond Conventional

• Printing speeds up to 605 SqFt (56.2 SqM) per hour
• High quality print resolution of up to 1,440 dpi
• Two model widths: 54-inch (1361 mm) and 64-inch (1610 mm)
• Choice of eco solvent or dye sublimation ink sets:
  • Eco solvent: 8 color options including Orange, and Light Black inks
  • Dye sublimation: vibrant 6 color dye sub options
• Nozzle Check Unit and Nozzle Recovery System
• UISS and optional MBIS III on board 2 liter bulk ink system
• 3-way intelligent heater

JV 150 Series Model

• JV150-130  ( 54")
• JV150-160  ( 64")

Sb53 ink is a water-based sublimation ink that produces bright colors and enables high-density printing. The ideal print material is polyester, which is used for apparel fabric, sports uniforms, and swimsuits.

Three-way intelligent heater system optimizes the ink droplets size. When the temperature of the media is not optimized, the perfect shape and size of droplets are not appropriately adhered onto the media. A patented three-way intelligent heater is built into the JV150, and each heater maintains the temperature appropriately to obtain high-quality printing.

Highly-assured inkjet technology - Each ink color has its own specific gravity and viscosity. To achieve precise placement of the ink droplets onto the media, Mimaki designed an optimum waveform that allows the printhead to jet each ink color at the appropriate jetting angle without losing excellent ink droplet circularity. Moreover, various ink droplet sizes are precisely placed from the minimum size 4pl to the maximum size 35pl. Small droplets create beautiful high-resolution printing, and large droplets are very useful for high-speed printing. Thus, the JV150 satisfies a wide range of needs including beautiful high-quality printing and productive high-speed printing.

Eco Solvent or Dye Sublimation

The JV150 Series wide-format printers can be configured for either eco solvent printing for sign and graphics applications or for dye-sublimation printing for textile and apparel transfer sublimation applications.

Expanded Eco Solvent Ink Set

The SS21 eco solvent ink set for the JV150 includes not only Light Magenta and Light Cyan, but Light Black for deeper dimensional monochromatic and grayscale imaging. The addition of Orange ink widens the color gamut for better accuracy in the color reproduction of food and solid Pantone® colors.

Uninterrupted Ink Supply System

When printing in CMYK, JV150 Series printers can be configured with two ink cartridges per color. Utilizing the UISS (Uninterrupted Ink Supply System) when one cartridge is emptied, the printer automatically switches to the full cartridge to deliver continuous imaging.

Precision Ink Drop Placement

Mimaki designed an optimum waveform enabling the print head to jet each ink color at the appropriate jetting angle without losing precise ink droplet circularity.

Anti-Banding Technology

Variable drop printing combined with MAPS3 (Mimaki Advanced Pass System 3) technology ensures precise and accurate print quality throughout the printing process, greatly reducing the appearance of banding and resulting in a smoother image.

Uniform Media Drying

A Mimaki-patented, three-way intelligent heating system results in uniform ink drying across the width of the printer, assuring even image quality.

• Pre-heater: Heats media to the optimum temperature before printing.
• Print heater: Dries ink after it lands on media before it bleeds, improving color development.
• Post-heater: Enhances ink drying and achieves stable take-up.
• Top blower: Air blower supports drying of ink.

What you can do with the Mimaki JV150 series
